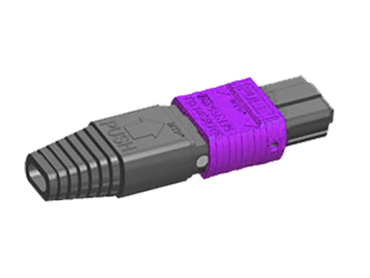

20103, Kit MTP® Universal, Oval Jacketed, Female Multimode or Multimode Elite, Munsell Violet Housing, 20N Spring Force
Features
Elliptical guide pin tip to minimize ferrule debris
Exceeds TIA and IEC dimensional requirements for optimal performance
Floating ferrule design ensures fiber contact integrity
Removable housing for interferometry and rework
Applications
Array fiber to single fiber breakouts and cassettes
Array trunk cables
FTTh (home) MDU cabling
Parallel optic patch cables: SR-4, SR-8 & PSM4
Qualified to TIA-568.3-D
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5
Structured cabling per TIA-942 & TIA-568
Specifications
Part Number
20103
Brand
MTP®
Type
Plug
Plug Performance
Standard, MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Munsell Violet
Cable Style
Oval
Operating Environment
Controlled
Cable Exit Type
20mm Boot
Style
MPO
Downloads
Drawing
C20090.pdf
Literature
MTP_Solutions_Brochure
Kit Bill of Materials
Component Part Number
Description
Drawing
Component Part Number
MTP-012-06
Description
Boot_Black_MTP®_20mm
Drawing
C11146.pdf
Component Part Number
MTP-A12-05
Description
Crimp Band_MTP®_Oval
Drawing
C10059.pdf
Component Part Number
5551
Description
Spring Push_MTP®_Universal
Drawing
C10486.pdf
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
C17698.pdf
Component Part Number
17795
Description
Spacer_Pin_FM_MTP®_Universal
Drawing
C17795.pdf
Component Part Number
16791
Description
Hsg_Munsell Violet_MTP®
Drawing
C10074.pdf
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
C17242.pdf
Related Products
12245, MTP® Crimp Tool, Oval
9883, MTP® Crimp Die, Oval
400053-01, Crimp Hand Tool
18476, MTP® Housing Removal Tool, Universal
18472, Ferrule Insertion Cap, MTP® and MTP® PRO
12013, Spring Compression Tool, MTP®
7104, IBC™ Brand Cleaner MPO II
