ELiMENT® Duplex LC Uniboot

ELiMENT® Duplex LC Uniboot

The ELiMENT® Duplex LC Uniboot connector is a high performance two-in-one LC connector with a low profile, stackable design that provides a user friendly, reliable solution optimized for simple factory installation.

Toolless polarity reversal of the ELiMENT® Duplex LC Uniboot in the field is effortless. The novel design enables simultaneous rotation of both ferrules while keeping bare fibers from being exposed at any time during polarity reversal. Polarity identification on the ELiMENT® Duplex LC Uniboot can be easily verified through a visible color-coded polarity window.

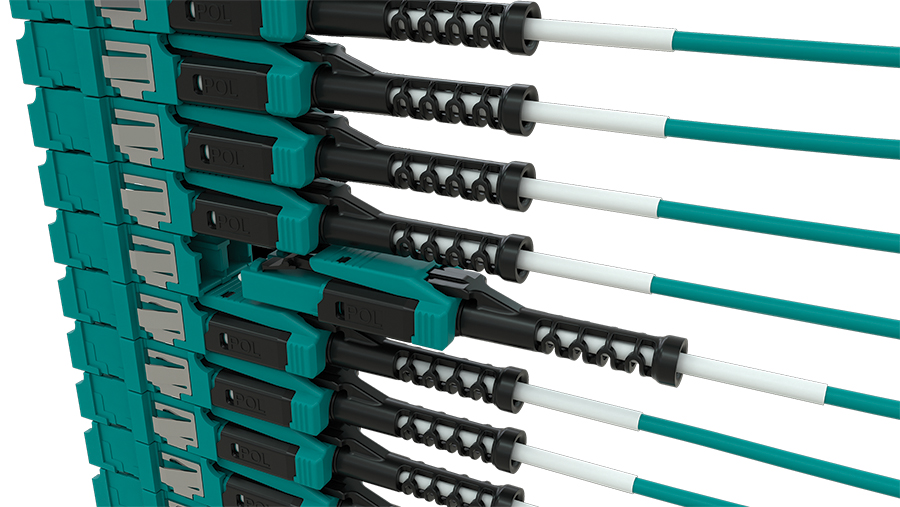

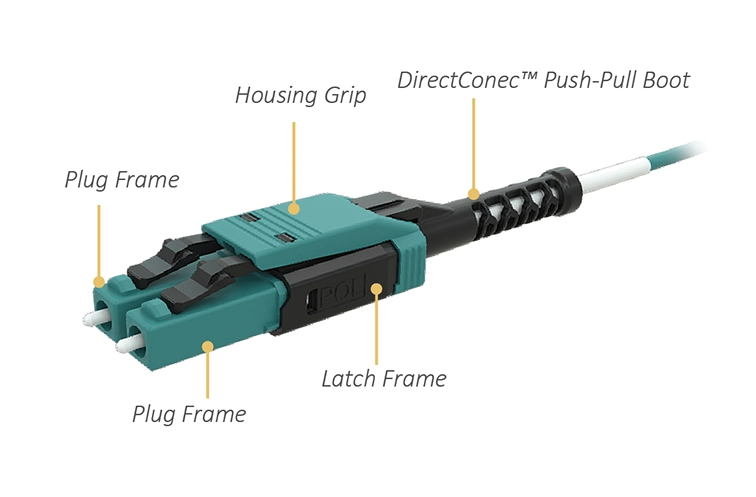

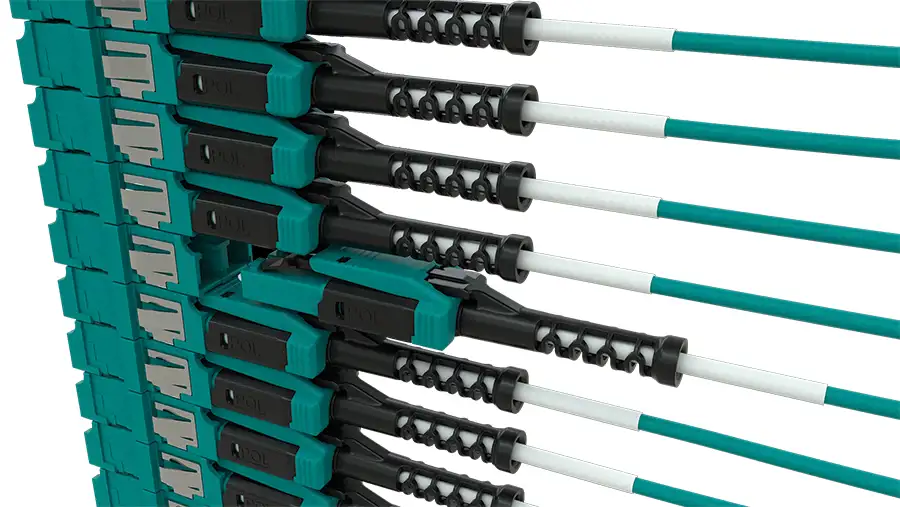

The redesigned low profile housing of the ELiMENT® Duplex LC Uniboot is designed for high density applications. When maximizing panel density, the adapters can be stacked and the connector can be disconnected by grasping the sides of the housing or by using the DirectConec™ push-pull boot. DirectConec™ push-pull technology provides access to the connector for effortless insertion and extraction.

ELiMENT® Duplex LC Uniboot Image

Features

  • PC and APC Uniboot connectors can be polished as duplex connectors
  • No tool required for rotating polarity change
  • Color coded polarity window clearly visible
  • Low profile design and DirectConec™ push-pull boot for high density applications
  • 2mm and 3mm cable options available

Literature

ELiMENT® Duplex LC Uniboot Handout




Video



ELiMENT® Duplex LC Uniboot
