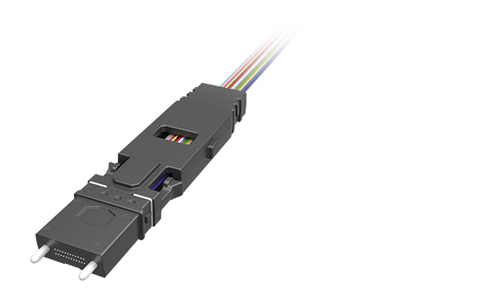

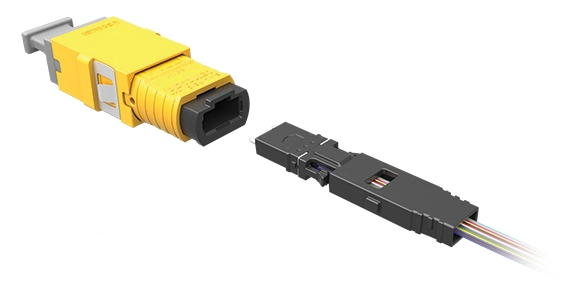

US Conec's Fast-Track™ MTP® connector system is an innovative addition to the proven MTP® product portfolio for high fiber count, pre-engineered cabling applications. Fast-Track™ MTP® connectors offer an ultra-compact, MTP® compatible fiber termination solution to enable pre-terminated assemblies for rapid field installation in congested pathways or conduit previously intended for splicing of bulk cable. Each miniature Fast-Track™ MTP® connector is factory verified for polarity management and MT Elite® insertion loss performance for optimal deployment speed in pre-terminated data center inter and intra connect applications.
Features:
- SM MTP Elite® insertion loss performance (0.25dB 97% random intermate)
- Ultra-compact pre-terminated plug
- Rapid deployment of pre-engineered solution by eliminating field processing
- GR-1435 compliant
- Supports MT and MT-16
- 10N and 20N MPO spring force applications
- Compatible with 250, 200 and 165 micron optical fibers
- Intermateable with standard MPO and MPO-16 cabling
