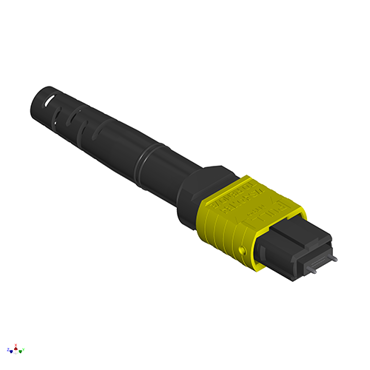

20593, Kit MTP® Universal, 4.0 MM Round, Male Single-mode Elite, Yellow Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20593
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Single-mode
Gender
Male
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Yellow
Cable Style
4.0 mm
Operating Environment
Controlled
Cable Exit Type
Standard Boot
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
13168
Description
Boot_Black_MTP®_4.5mm
Drawing
Component Part Number
16543
Description
Crimp Band _MTP®_4.0 mm
Drawing
Component Part Number
22900
Description
Spring Push MTP®_2 Pc_Unv_PEI
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17801
Description
Pin-Clamp_SM_ELT_MTP®Universal
Drawing
Component Part Number
16918
Description
Hsg_Yellow_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
