Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Highest precision SS guide pins
- Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
- Removable housing for interferometry and rework
Applications
- Array fiber to single fiber breakouts and cassettes
- Array trunk cables
- FTTh (home) MDU cabling
- Parallel optic patch cables: SR-4, SR-8 & PSM4
- Qualified to GR-1435 service life
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
- Structured cabling per TIA-942 & TIA-568
Specifications

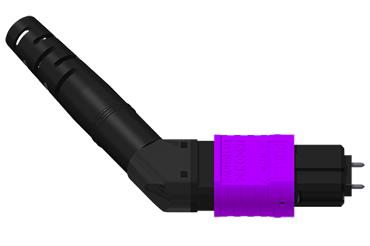

Part Number
20609
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
10N
Fiber Count
1x8, 4+4, 1x12
Housing Color
Munsell Violet
Cable Style
4.0 mm
Operating Environment
Controlled
Cable Exit Type
Angled Exit
Style
MPO
Downloads
Drawing
Literature
Kit Bill of Materials
Component Part Number
Description
Drawing
