Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Removable housing for interferometry and rework
Applications
- Array fiber to single fiber breakouts and cassettes
- Array trunk cables
- FTTh (home) MDU cabling
- Parallel optic patch cables: SR-4, SR-8 & PSM4
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
- Structured cabling per TIA-942 & TIA-568
Specifications

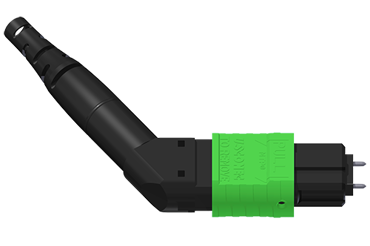

Part Number
20508
Brand
MTP®
Type
Plug
Plug Performance
Standard
Key Orientation
Standard - TIA-604-5
Fiber Type
Single-mode
Gender
Male
Spring Force
10N
Fiber Count
1x4, 1x8, 1x12, 2x12
Housing Color
Green
Cable Style
3.6 mm
Operating Environment
Controlled
Cable Exit Type
Angled Exit
Style
MPO
