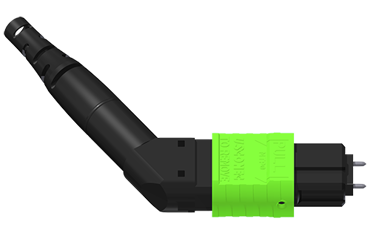

20506, Kit MTP® Universal, 3.6 MM Round, Male Multimode Elite, Angled Spring Push, Lime Housing, 10N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20506
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
10N
Fiber Count
1x8, 4+4, 1x12
Housing Color
Lime
Cable Style
3.6 mm
Operating Environment
Controlled
Cable Exit Type
Angled Exit
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
12165
Description
Boot_Black_MTP®_3.6 mm
Drawing
Component Part Number
17776
Description
Crimp band_3.6 mm_ 2 pc SP
Drawing
Component Part Number
19973
Description
Spring Push_MTP®_2pc_Univ_Angl
Drawing
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
Component Part Number
17800
Description
Pin-Clamp_SM_MTP®_Universal
Drawing
Component Part Number
18829
Description
Hsg_Lime_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
