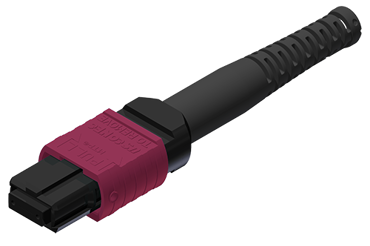

20472, Kit MTP® Universal, 3.6 MM Round, Female Multimode or Multimode Elite®, Flex Boot, Magenta Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20472
Brand
MTP®
Type
Plug
Performance
Standard, MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Magenta
Cable Style
3.6 mm
Operating Environment
Controlled
Cable Exit Type
MTP® Flex Boot 3.0mm and 3.6 m
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17065
Description
Boot_Black_MTP®_3.6 mm_FLEX
Drawing
Component Part Number
16426
Description
Crimp Band _MTP®_3.6 mm
Drawing
Component Part Number
19738
Description
Spring Push_Universal_3.6mm
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17795
Description
Spacer_Pin_FM_MTP®_Universal
Drawing
Component Part Number
13949
Description
Hsg_Magenta_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
