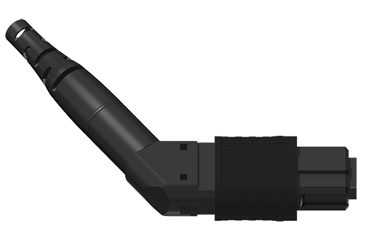

20300, Kit MTP® Universal, 3.0 MM Round, Female Multimode, Angled Spring Push, Black Housing, 10N Spring Force
Features
Elliptical guide pin tip to minimize ferrule debris
Exceeds TIA and IEC dimensional requirements for optimal performance
Floating ferrule design ensures fiber contact integrity
Removable housing for interferometry and rework
Applications
Array fiber to single fiber breakouts and cassettes
Array trunk cables
FTTh (home) MDU cabling
Parallel optic patch cables: SR-4, SR-8 & PSM4
Qualified to TIA-568.3-D
Standards Compliance IEC 61754-7-1; 61754-7-2
Standards Compliance TIA 604-5
Structured cabling per TIA-942 & TIA-568
Specifications
Part Number
20300
Brand
MTP®
Type
Plug
Plug Performance
Standard
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
10N
Fiber Count
1x4, 1x8, 1x12
Housing Color
Black
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
Angled Exit
Style
MPO
Downloads
Drawing
C20298.pdf
Literature
MTP_Solutions_Brochure
Kit Bill of Materials
Component Part Number
Description
Drawing
Component Part Number
16377
Description
Boot_3.0_MXC®_3.6 OD
Drawing
C16377.pdf
Component Part Number
18365
Description
Crimp band_3.0_MXC®_w/3.6 Hex
Drawing
C18365.pdf
Component Part Number
19973
Description
Spring Push_MTP®_2pc_Univ_Angl
Drawing
C19973.pdf
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
C17167.pdf
Component Part Number
17795
Description
Spacer_Pin_FM_MTP®_Universal
Drawing
C17795.pdf
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
C17242.pdf
Related Products
8202, MTP® Round Crimp Tool, 3.0mm
8173, MTP® Round Crimp Die, 3.0
400053-01, Crimp Hand Tool
18476, MTP® Housing Removal Tool, Universal
18472, Ferrule Insertion Cap, MTP® and MTP® PRO
12013, Spring Compression Tool, MTP®
7104, IBC™ Brand Cleaner MPO II
