Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Highest precision SS guide pins
- Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
- Removable housing for interferometry and rework
Applications
- Array fiber to single fiber breakouts and cassettes
- Array trunk cables
- FTTh (home) MDU cabling
- Parallel optic patch cables: SR-4, SR-8 & PSM4
- Qualified to GR-1435 service life
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
- Structured cabling per TIA-942 & TIA-568
Specifications

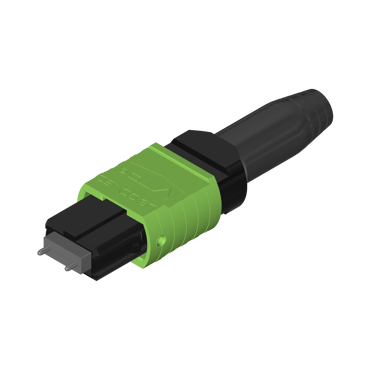

Part Number
23175
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
10N
Fiber Count
1x8, 4+4, 1x12
Housing Color
Lime
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO
Downloads
Drawing
Literature
Kit Bill of Materials
Component Part Number
Description
Drawing
