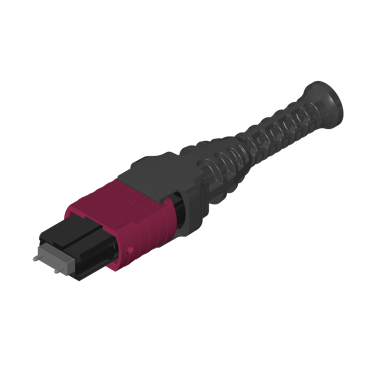

24536, Kit MTP® Universal, 2.0 MM Round, Male Multimode Elite, Magenta Housing, DirectConec™ Push-Pull Boot, 20N Spring Force

Specifications

Part Number
24536
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x8, 4+4, 1x12
Housing Color
Magenta
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Push Pull 2.0-3.0
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
24363
Description
Boot_MTP® 3.0_Black_Push-Pull
Drawing
Component Part Number
16424
Description
Crimp Band _MTP®_2.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17800
Description
Pin-Clamp_SM_MTP®_Universal
Drawing
Component Part Number
13949
Description
Hsg_Magenta_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
