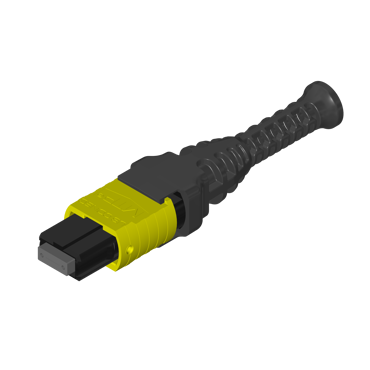

24525, Kit MTP® Universal, 2.0 MM Round, Female Single-mode Elite, Yellow Housing, DirectConec™ Push-Pull Boot, 10N Spring Force

Specifications

Part Number
24525
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Standard - TIA-604-5
Fiber Type
Single-mode
Gender
Female
Spring Force
10N
Fiber Count
1x8, 4+4, 1x12, 2x12
Housing Color
Yellow
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Push Pull 2.0-3.0
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
24363
Description
Boot_MTP® 3.0_Black_Push-Pull
Drawing
Component Part Number
16424
Description
Crimp Band _MTP®_2.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
Component Part Number
17795
Description
Spacer_Pin_FM_MTP®_Universal
Drawing
Component Part Number
16918
Description
Hsg_Yellow_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
