Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Highest precision SS guide pins
- Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
- Quick and effective field pin reconfiguration without removing housing
- Removable housing for interferometry and rework
- Simple field polarity change with one-step insertion/extraction from Field Tool
Applications
- Array fiber to single fiber breakouts and cassettes
- Array trunk cables
- FTTh (home) MDU cabling
- Parallel optic patch cables: SR-4, SR-8 & PSM4
- Qualified to GR-1435 service life
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7
- Standards Compliance TIA 604-5
- Structured cabling per TIA-942 & TIA-568
Specifications

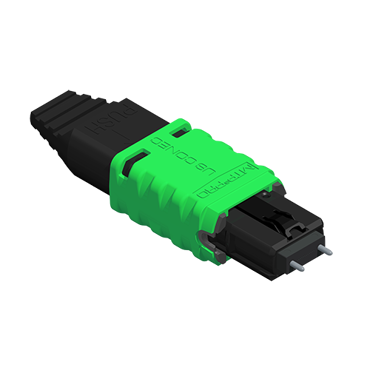

Part Number
18717
Brand
MTP® PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Single-mode
Gender
Male
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Green
Cable Style
Ribbon
Operating Environment
Controlled
Cable Exit Type
Standard Boot
Style
MPO
Downloads
Drawing
Literature
Videos
Kit Bill of Materials
Component Part Number
Description
Drawing
