Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Highest precision SS guide pins
- Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
- Quick and effective field pin reconfiguration without removing housing
- Removable housing for interferometry and rework
- Simple field polarity change with one-step insertion/extraction from Field Tool
Applications
- Array fiber to single fiber breakouts and cassettes
- Array trunk cables
- FTTh (home) MDU cabling
- Parallel optic patch cables: SR-4, SR-8 & PSM4
- Qualified to GR-1435 service life
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7
- Standards Compliance TIA 604-5
- Structured cabling per TIA-942 & TIA-568
Specifications

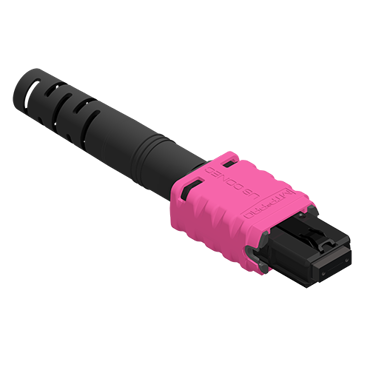

Part Number
18684
Brand
MTP® PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
10N
Fiber Count
4+4, 1x12
Housing Color
Heather Violet
Cable Style
5.5 mm
Operating Environment
Controlled
Cable Exit Type
Standard Boot
Style
MPO
