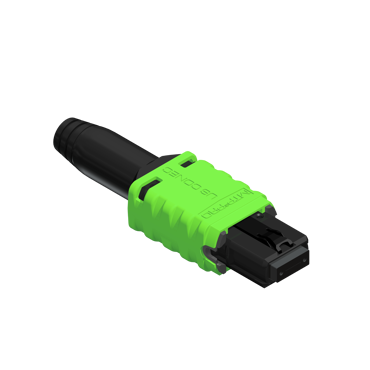

20982, Kit MTP® PRO, 3.0 MM Round, Female Multimode Elite, Short Boot, Lime Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Quick and effective field pin reconfiguration without removing housing
  • Removable housing for interferometry and rework
  • Simple field polarity change with one-step insertion/extraction from Field Tool

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20982
Brand
MTP® PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Lime
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO

Downloads

Drawing
Literature

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
16457
Description
Boot_Black_MTP®_Short 2-3MM
Drawing
Component Part Number
15633
Description
Crimp Band_MTP®_3.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17861
Description
Spacer_Pin_Female_MTP®Pro
Drawing
Component Part Number
19486
Description
Hsg_Lime_MTP®Pro
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
