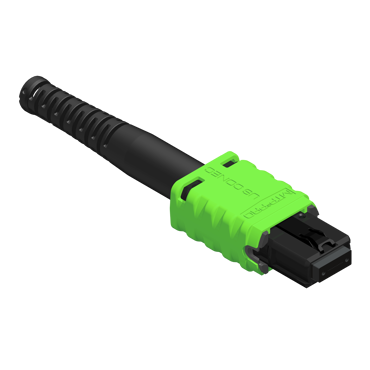

20992, Kit MTP® PRO, 3.0 MM Round, Female Multimode Elite, Flex Boot, Lime Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Quick and effective field pin reconfiguration without removing housing
  • Removable housing for interferometry and rework
  • Simple field polarity change with one-step insertion/extraction from Field Tool

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20992
Brand
MTP® PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
2x12 (20N)
Housing Color
Lime
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
MTP® Flex Boot 3.0mm and 3.6 m
Style
MPO

Downloads

Drawing
Literature

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
15960
Description
Boot_Black_MTP®_3.0 mm_FLEX
Drawing
Component Part Number
15633
Description
Crimp Band_MTP®_3.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17861
Description
Spacer_Pin_Female_MTP®Pro
Drawing
Component Part Number
19486
Description
Hsg_Lime_MTP®Pro
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
