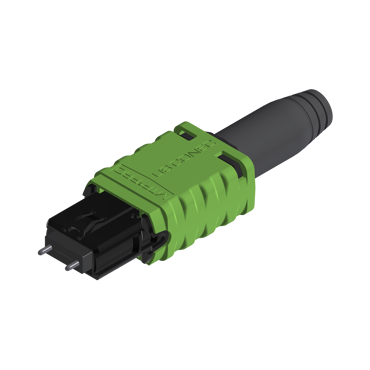

23196, Kit MTP®PRO, 2.0 MM Round, Male Multimode Elite®, Short Boot, Lime Housing, 10N Spring Force

Specifications

Part Number
23196
Brand
MTP®PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
10N
Fiber Count
4+4, 1x12
Housing Color
Lime
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO

Downloads

Drawing
C23191.pdf

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
16457
Description
Boot_Black_MTP®_Short 2-3MM
Drawing
C16457.pdf
Component Part Number
16424
Description
Crimp Band _MTP®_2.0 mm
Drawing
C16424.pdf
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
C19692.pdf
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
C17167.pdf
Component Part Number
19038
Description
Pin-Clamp_Male_MMElite_MTP®Pro
Drawing
C19038.pdf
Component Part Number
19486
Description
Hsg_Lime_MTP®Pro
Drawing
C17894.pdf
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
C17242.pdf
