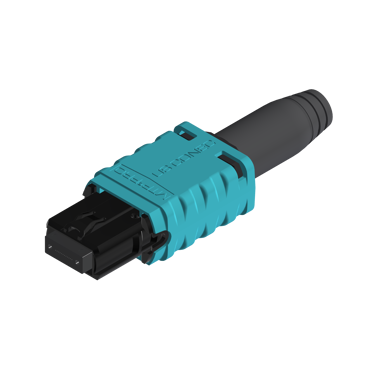

23191, Kit MTP® PRO, 2.0 MM Round, Female Multimode Elite, Short Boot, Aqua Housing, 10N Spring Force

Specifications

Part Number
23191
Brand
MTP® PRO
Type
Plug
Plug Performance
MTP Elite®
Key Orientation
Switchable Polarity - TIA-604-5
Fiber Type
Multimode
Gender
Female
Spring Force
10N
Fiber Count
4+4, 1x12
Housing Color
Aqua
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
16457
Description
Boot_Black_MTP®_Short 2-3MM
Drawing
Component Part Number
16424
Description
Crimp Band _MTP®_2.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
Component Part Number
17861
Description
Spacer_Pin_Female_MTP®Pro
Drawing
Component Part Number
18189
Description
Hsg_Aqua_MTP® Pro
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
