Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Removable housing for interferometry and rework
Applications
- Aggregation of SR4 & PSM4 links
- Array fiber to single fiber breakouts and cassettes
- High density array trunk cables
- Parallel optic patch cables SR-8, SR-16, PSM8
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7-3; 61754-7-4
- Standards Compliance TIA 604-18
- Structured cabling per TIA-942 & TIA-568
Specifications

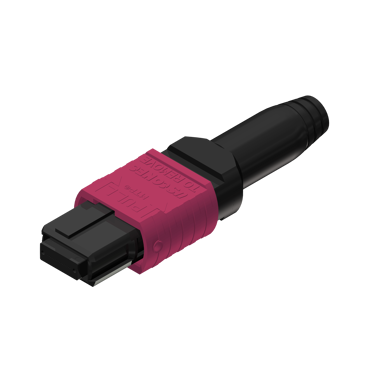

Part Number
21177
Brand
MTP®-16
Type
Plug
Plug Performance
Standard, MTP Elite®
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Magenta
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO 16
Downloads
Videos
Kit Bill of Materials
Component Part Number
Description
Drawing
