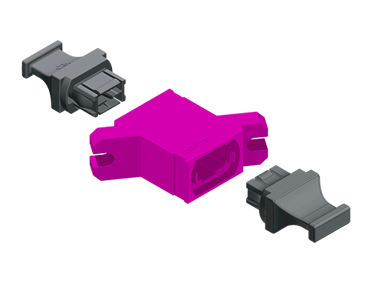

17026, Adapter, Angled, MTP® Standard Footprint, Full Flange, Opposed Key, Magenta, 2 Dust Plugs

Features

  • Exceeds TIA and IEC dimensional requirements for optimal TWAL performance
  • Latch beam and interface designed to minimize debris generation

Applications

  • Card edge connectivity for on-board optic applications
  • FTTx distribution hubs
  • High density patch panels for data center, MSO and CO applictions
  • MTP® to single fiber breakout cassettes
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

Specifications

Part Number
17026
Brand
MTP®, MTP® PRO
Type
Adapter
Adapter Style
Angled
Adapter Color
Magenta
Adapter Mounting
Full Flange
Plug Performance
Standard,MTP Elite®,Enhanced
Key Orientation
Opposed Key
Style
MPO

Downloads

Drawing
