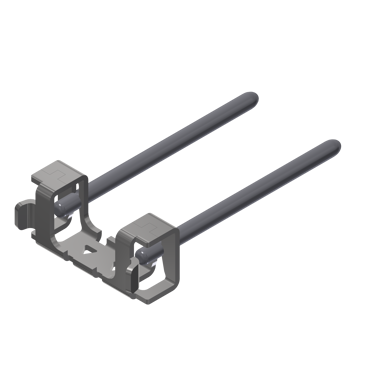

22299, Pin Clamp MTP® Universal, Single-mode Elite, Enhanced Performance

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
22299
Brand
MTP®
Type
Plug
Plug Performance
MTP Elite®, Enhanced
Key Orientation
Standard - TIA-604-5
Fiber Type
Single-mode
Gender
Male
Spring Force
10N,20N
Fiber Count
1x4, 1x8, 1x12, 2x12
Cable Style
2.0mm-5.5mm Universal
Operating Environment
Controlled
Cable Exit Type
All Cable Exits
Style
MPO
