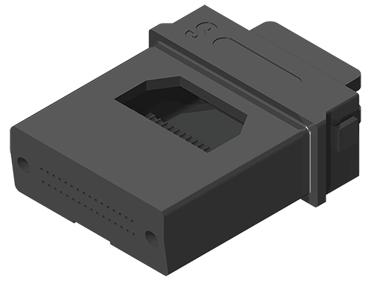

18733, MT-16 Ferrule with boot, 2x16F, Single-mode, Pre-Angled

Features

  • 0.55mm guide pins; 5.3mm guide pin pitch
  • 16 Fibers per row
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance
  • Pre-angled ferrule for minimized polishing time

Applications

  • FTTx hardened connector cabling infrastructure
  • MTP 16™ brand MPO-16 cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18

Specifications

Part Number
18733
Brand
MT-16
Performance
Standard
Fiber Type
Single-mode
Fiber Count
2x16
Endface Type
Pre-Angle Ferrule
Polish Type
APC
Fiber Cladding Size
125 micron

Downloads

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
18432
Description
Ferrule_2x16F_SM MT_PPS
Drawing
Component Part Number
15449
Description
Boot_Ferrule_MT_2x16_.5mmPitch
Drawing
