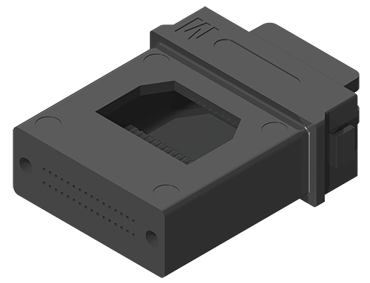

17948, MT-16 Ferrule with boot, 2x16F, Multimode

Features

  • 0.55mm guide pins; 5.3mm guide pin pitch
  • 16 Fibers per row
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance

Applications

  • FTTx hardened connector cabling infrastructure
  • MTP 16™ brand MPO-16 cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18

Specifications

Part Number
17948
Brand
MT-16
Performance
Standard
Fiber Type
Multimode
Fiber Count
2x16
Endface Type
Flat Ferrule
Polish Type
PC
Fiber Cladding Size
125 micron

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17943
Description
Ferrule_2x16F_MM MT_PPS
Drawing
Component Part Number
23629
Description
Boot_MT Ferrule_2x16F_Closed
Drawing
