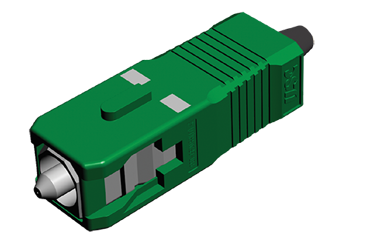

17266, Kit, SC 900um, Single-mode, Angled, Green Housing, Black Boot

Features

  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body
  • Pre-radiused ferrule endface

Applications

  • Central office applications
  • FTTx fiber distribution hubs
  • Standards Compliance IEC-61754-4
  • Standards Compliance TIA-604-3

Specifications

Part Number
17266
Brand
ELiMENT® Single Fiber
Type
Plug
Style
SC
Performance
Low-loss
Fiber Type
Single-mode
Fiber Count
1x1
Polish Type
APC
Housing Color
Green
Boot Color
Black
Heat Shrink Color
No Heat Shrink
Cable Style
900 micron
Cable Exit Type
Standard Boot
Insertion Extraction
Push Pull

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17341
Description
Boot_SC_900 um_Black_NL
Drawing
Component Part Number
17333
Description
Assy_SC_APC_InnerHsg_Grn
Drawing
