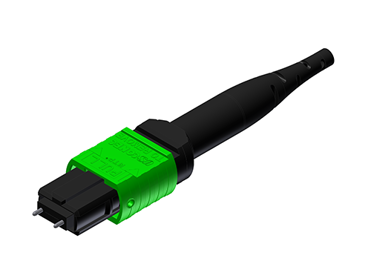

20156, Kit MTP® Universal, 2.5 MM Round, Male Single-mode, Green Housing, 10N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
20156
Brand
MTP®
Type
Plug
Performance
Standard
Key Orientation
Standard - TIA-604-5
Fiber Type
Single-mode
Gender
Male
Spring Force
10N
Fiber Count
1x4, 1x8, 1x12, 2x12
Housing Color
Green
Cable Style
2.5 mm
Operating Environment
Controlled
Cable Exit Type
Standard Boot
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
8041
Description
Boot_Black_MTP®_3.0mm
Drawing
Component Part Number
16425
Description
Crimp Band _MTP®_2.5 mm_HS
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
17167
Description
Spring_MTP®Universal Seat_9.8N
Drawing
Component Part Number
17800
Description
Pin-Clamp_SM_MTP®_Universal
Drawing
Component Part Number
16007
Description
Hsg_Green_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
