Features
- <= 12Fibers per row
- 0.7mm guide pins; 4.6mm guide pin pitch
- High Density; fiber pitch: 0.25mm
- Highly glass filled for dimensional stability and stable environmental performance
- Low hygroscopic PPS material for stable environmental performance
- Low insertion loss optimized for 40G, 100G and 400G link applications
- Mold marks to indicate fiber type, fiber count and performance
Applications
- FTTx hardened connector cabling infrastructure
- MTP® brand MPO cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-5
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
Specifications

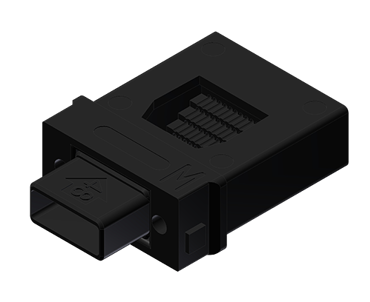

Part Number
12599
Brand
MT
Performance
Standard
Fiber Type
Multimode
Fiber Count
4x12
Endface Type
Flat Ferrule
Polish Type
PC
Fiber Cladding Size
125 micron
Downloads
Drawing
Literature
Kit Bill of Materials
Component Part Number
Description
Drawing
