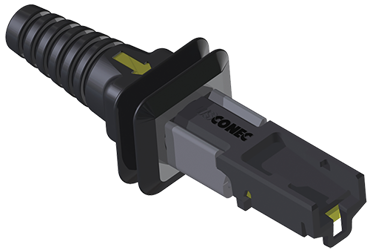

15059, PRIZM®LightTurn® Jacket Cable Housing Kit

Features

  • Bidirectional components
  • Collimating lenses
  • Ferrule float within the connector
  • Integrated alignment pins
  • Keyed for proper mating orientation
  • Quick termination, no polishing
  • TIR (total internal reflection) lens
  • Wavelength independent optical grade material

Applications

  • Active Optical Cables
  • MPO pluggable transceivers
  • On-board mounted optical engines

Specifications

Part Number
15059
Brand
PRIZM®LightTurn®
Performance
Tx/Rx Interface Plug
Fiber Type
Black
Fiber Count
1x8, 1x12
Fiber Cladding Size
Boot

Downloads

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
14360
Description
Hsg_Ext. Conn_PRIZM® V2
Drawing
Component Part Number
14361
Description
Hsg_Ext Snap_Conn. PRIZM® L
Drawing
Component Part Number
14497
Description
Boot_PRIZM® LT RndCblHsg_MOD
Drawing
