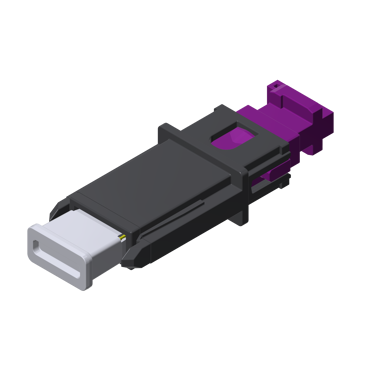

22076, Kit MXC®, Internal Plug, Single Port Blind Mate

Features

  • Finger actuated latch release
  • Protruding ferrule for coupling to MXC® External Plugs
  • Ribbon or bend relief for On Board Optic (OBO) architectures
  • Simple BOP design optimized for PRIZM® MT Ferrules

Applications

  • High density blind mate backplane or midplane interconnects

Specifications

Part Number
22076
Brand
MXC®
Type
Internal Plug
Ferrule Type
PRIZM® MT
Cable Style
Ribbon
Cable Exit Type
No Boot
Insertion Extraction
Trigger Release
Housing Color
Black
Spring Force
3.1N

Downloads

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
23341
Description
Hsg_Int MXC®SPBM_Gray_w/Spacer
Drawing
Component Part Number
21279
Description
Float SP_MXC SPBM
Drawing
Component Part Number
21577
Description
DustCap_Ferrule_Prizm®MT_Slate
Drawing
Component Part Number
19326
Description
Spring_Univ_3.1N_MXC Spacer
Drawing
