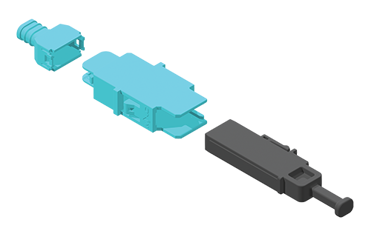

15901, Kit MXC®, Aqua Receptacle with Aqua Heatshrink Attactment and Gray Dust Plug

Features

  • 3N spring for PRIZM® MT ferrules minimizes insertion force
  • Cable sizes ranging from 2.0mm to 5.5mm
  • Pull tab or thumb trigger release for ribbon applications
  • Recessed ferrule prevents lens or endface damage from handling/mating
  • Simple BOP design optimized for PRIZM® MT Ferrules
  • Thumb trigger release for cabled applications

Applications

  • Blind mate backplane or midplane interconnects
  • Front panel bulkhead interconnects
  • High density point to point links for On Board Optic (OBO) architectures

Specifications

Part Number
15901
Brand
MXC®
Type
External Plug
Ferrule Type
PRIZM® MT
Cable Style
Ribbon
Cable Exit Type
No Boot
Insertion Extraction
Trigger Release
Housing Color
Aqua
Spring Force
3.1N

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
15765
Description
Heatshrink_Attachment_MXC®Aqua
Drawing
Component Part Number
15782
Description
DustPlug_Receptacle_MXC®_Gray
Drawing
Component Part Number
15752
Description
Receptacle_MXC®_Aqua
Drawing
