Features
- 3N spring for PRIZM® MT ferrules minimizes insertion force
- Cable sizes ranging from 2.0mm to 5.5mm
- Pull tab or thumb trigger release for ribbon applications
- Recessed ferrule prevents lens or endface damage from handling/mating
- Simple BOP design optimized for PRIZM® MT Ferrules
- Thumb trigger release for cabled applications
Applications
- Blind mate backplane or midplane interconnects
- Front panel bulkhead interconnects
- High density point to point links for On Board Optic (OBO) architectures
Specifications

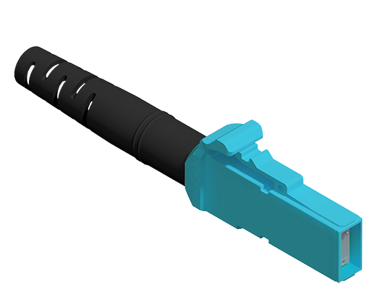

Part Number
19885
Brand
MXC®
Type
External Plug
Ferrule Type
PRIZM® MT
Cable Style
5.5 mm
Cable Exit Type
Standard Boot
Insertion Extraction
Trigger Release
Housing Color
Aqua
Spring Force
3.1N
Downloads
Drawing
Literature
Kit Bill of Materials
Component Part Number
Description
Drawing
