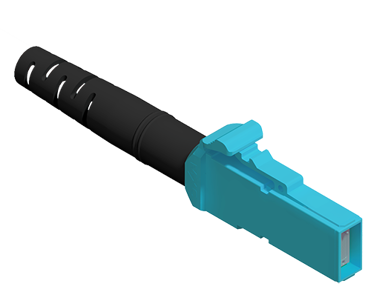

19880, Kit MXC®, 4.0 MM Round, Aqua Housing

Features

  • 3N spring for PRIZM® MT ferrules minimizes insertion force
  • Cable sizes ranging from 2.0mm to 5.5mm
  • Pull tab or thumb trigger release for ribbon applications
  • Recessed ferrule prevents lens or endface damage from handling/mating
  • Simple BOP design optimized for PRIZM® MT Ferrules
  • Thumb trigger release for cabled applications

Applications

  • Blind mate backplane or midplane interconnects
  • Front panel bulkhead interconnects
  • High density point to point links for On Board Optic (OBO) architectures

Specifications

Part Number
19880
Brand
MXC®
Type
External Plug
Ferrule Type
PRIZM® MT
Cable Style
4.0 mm
Cable Exit Type
Standard Boot
Insertion Extraction
Trigger Release
Housing Color
Aqua
Spring Force
3.1N

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
13168
Description
Boot_Black_MTP®_4.5mm
Drawing
Component Part Number
16543
Description
Crimp Band _MTP®_4.0 mm
Drawing
Component Part Number
18048
Description
Spring Push Assy_2pc_ MXC®_Aqu
Drawing
Component Part Number
19326
Description
Spring_Univ_3.1N_MXC Spacer
Drawing
Component Part Number
19876
Description
Housing_MXC®_Aqua_w/Spacer
Drawing
Component Part Number
15784
Description
Dust Cap_Plug_MXC®_Aqua
Drawing
