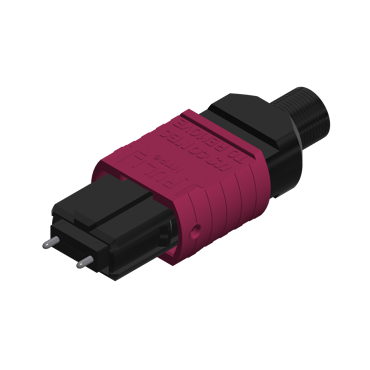

23780, Kit MTP® Universal, Male Multimode, Magenta Housing, No Crimp No Boot, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
23780
Brand
MTP®
Type
Plug
Plug Performance
Standard
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x4, 1x8, 1x12
Housing Color
Magenta
Cable Style
Ribbon
Operating Environment
Controlled

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22900
Description
Spring Push MTP®_2 Pc_Unv_PEI
Drawing
Component Part Number
17698
Description
Spring_MTP®_Universal Seat_20N
Drawing
Component Part Number
17799
Description
Pin Clamp_M-MM_MTP®_Universal
Drawing
Component Part Number
13949
Description
Hsg_Magenta_MTP®
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
