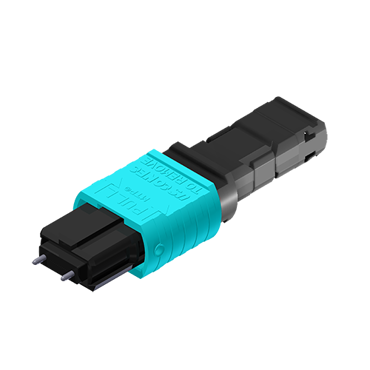

15320, Kit MTP® 900µ, Male Multimode, Aqua Housing, 10N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
15320
Brand
MTP®
Type
Plug
Performance
Standard
Key Orientation
Standard - TIA-604-5
Fiber Type
Multimode
Gender
Male
Spring Force
10N
Fiber Count
1x4, 1x8, 1x12
Housing Color
Aqua
Cable Style
900 um
Operating Environment
Controlled
Cable Exit Type
No Boot
Style
MPO

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
14872
Description
900µ Lock (Tube Clamp)
Drawing
Component Part Number
14869
Description
900µm Transtition
Drawing
Component Part Number
15706
Description
Spring Push_MTP®_2pc_900µ
Drawing
Component Part Number
14511
Description
Spring_MTP®_HFC_9.8N
Drawing
Component Part Number
16741
Description
Pin Clamp_M-MM_HFC_MTP®
Drawing
Component Part Number
7871
Description
Hsg_Aqua_MTP®
Drawing
Component Part Number
MTP-012-01
Description
Protective Cap_MTP®
Drawing
