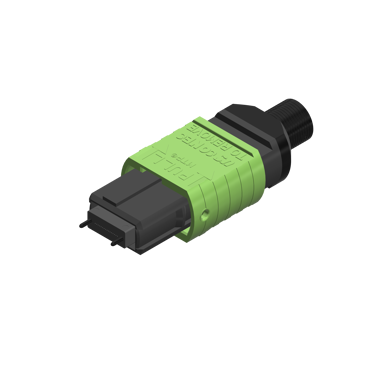

23805, Kit MTP®-16 Universal, Male Multimode, Lime Housing, No Crimp No Boot, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Aggregation of SR4 & PSM4 links
  • Array fiber to single fiber breakouts and cassettes
  • High density array trunk cables
  • Parallel optic patch cables SR-8, SR-16, PSM8
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
23805
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x4, 1x8, 1x12
Housing Color
Lime
Cable Style
Ribbon
Operating Environment
Controlled

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22900
Description
Spring Push MTP®_2 Pc_Unv_PEI
Drawing
Component Part Number
22515
Description
Spring_MTP® Univ._20N_HSF
Drawing
Component Part Number
17782
Description
Pin Clamp_MM Male_MTP®-16
Drawing
Component Part Number
19103
Description
Hsg_MTP®-16_Lime
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
