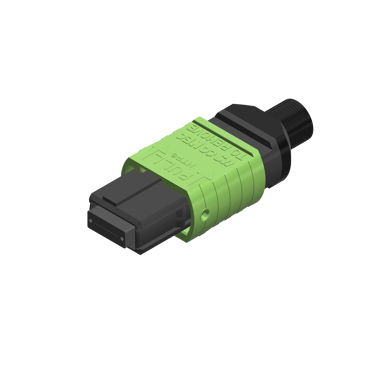

23804, Kit MTP®-16 Universal, Female Multimode, Lime Housing, No Crimp No Boot, 20N Spring Force

Specifications

Part Number
23804
Brand
MTP®16
Type
Plug
Plug Performance
Standard, MTP Elite®
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Female
Spring Force
20N
Fiber Count
1x4, 1x8, 1x12
Housing Color
Lime Green
Cable Style
Ribbon
Operating Environment
Controlled
Cable Exit Type
Blank

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22900
Description
Spring Push MTP®_2 Pc_Unv_PEI
Drawing
Component Part Number
22515
Description
Spring_MTP®Univ._20N_HighForce
Drawing
Component Part Number
15391
Description
Spacer_Pin_Female_16F Ferrule
Drawing
Component Part Number
19103
Description
Hsg_MTP-16™_Lime
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
23804, Kit MTP®-16 Universal, Female Multimode, Lime Housing, No Crimp No Boot, 20N Spring Force
