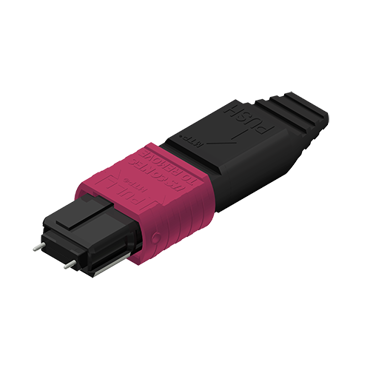

18044, Kit MTP®-16 Ribbon, Male Multimode, Magenta Housing, 20N Spring Force
Features
Elliptical guide pin tip to minimize ferrule debris
Exceeds TIA and IEC dimensional requirements for optimal performance
Floating ferrule design ensures fiber contact integrity
Removable housing for interferometry and rework
Applications
Aggregation of SR4 & PSM4 links
Array fiber to single fiber breakouts and cassettes
High density array trunk cables
Parallel optic patch cables SR-8, SR-16, PSM8
Qualified to TIA-568.3-D
Standards Compliance IEC 61754-7-3; 61754-7-4
Standards Compliance TIA 604-18
Structured cabling per TIA-942 & TIA-568
Specifications
Part Number
18044
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Magenta
Cable Style
Ribbon
Operating Environment
Controlled
Cable Exit Type
Standard Boot
Style
MPO 16
Downloads
Drawing
C17864.pdf
Literature
MTP_Solutions_Brochure
Literature
MTP-16_Connector_Handout
Videos
Sorry, your browser doesn't support embedded videos.
Sorry, your browser doesn't support embedded videos.
Kit Bill of Materials
Component Part Number
Description
Drawing
Component Part Number
19676
Description
Boot_Black_MTP®_BR_Univ_AF
Drawing
C19676.pdf
Component Part Number
5551
Description
Spring Push_MTP®_Universal
Drawing
C10486.pdf
Component Part Number
22515
Description
Spring_MTP® Univ._20N_HSF
Drawing
C22515.pdf
Component Part Number
17782
Description
Pin Clamp_MM Male_MTP®-16
Drawing
C17782.pdf
Component Part Number
16822
Description
Hsg_MTP®-16_Magenta
Drawing
C16819.pdf
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
C17242.pdf
Related Products
18476, MTP® Housing Removal Tool, Universal
18472, Ferrule Insertion Cap, MTP® and MTP® PRO
12013, Spring Compression Tool, MTP®
7104, IBC™ Brand Cleaner MPO II
