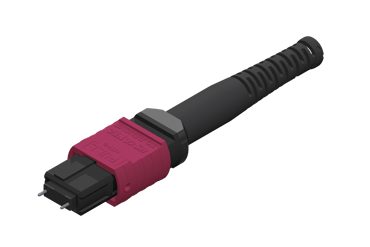

21368, Kit MTP®-16 3.6 MM Round, Male Multimode, Flex Boot, Magenta Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Aggregation of SR4 & PSM4 links
  • Array fiber to single fiber breakouts and cassettes
  • High density array trunk cables
  • Parallel optic patch cables SR-8, SR-16, PSM8
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
21368
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Magenta
Cable Style
3.6 mm
Operating Environment
Controlled
Cable Exit Type
MTP® Flex Boot 3.0mm and 3.6 m
Style
MPO 16

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17065
Description
Boot_Black_MTP®_3.6 mm_FLEX
Drawing
Component Part Number
16426
Description
Crimp Band _MTP®_3.6 mm
Drawing
Component Part Number
22823
Description
Spring Push_Universal_3.6_PEI
Drawing
Component Part Number
22515
Description
Spring_MTP® Univ._20N_HSF
Drawing
Component Part Number
17782
Description
Pin Clamp_MM Male_MTP®-16
Drawing
Component Part Number
16822
Description
Hsg_MTP®-16_Magenta
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
