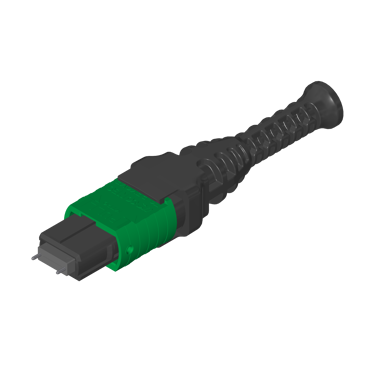

24678, Kit MTP®-16, 3.0 MM Round, Male Single-Mode, Green Housing, DirectConec™ Push-Pull Boot, 20N Spring Force

Specifications

Part Number
24678
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Single-mode
Gender
Male
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Green
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
Push Pull 2.0-3.0
Style
MPO 16

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
24363
Description
Boot_MTP® 3.0_Black_Push-Pull
Drawing
Component Part Number
15633
Description
Crimp Band_MTP®_3.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
22515
Description
Spring_MTP®Univ._20N_HighForce
Drawing
Component Part Number
15609
Description
Pin Clamp_SM Male_MTP®-16
Drawing
Component Part Number
19068
Description
Hsg_MTP®-16_Green
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
