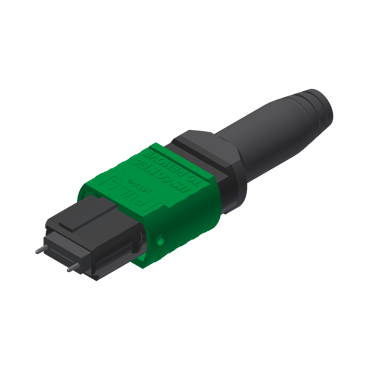

23190, Kit MTP®-16 2.0 MM Round, Male Single-mode, Short Boot, Green Housing, 20N Spring Force

Specifications

Part Number
23190
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Single-mode
Gender
Male
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Green
Cable Style
2.0 mm
Operating Environment
Controlled
Cable Exit Type
Short Boot
Style
MPO 16

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
16457
Description
Boot_Black_MTP®_Short 2-3MM
Drawing
Component Part Number
16424
Description
Crimp Band _MTP®_2.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
22515
Description
Spring_MTP® Univ._20N_HSF
Drawing
Component Part Number
15609
Description
Pin Clamp_SM Male_MTP®-16
Drawing
Component Part Number
19068
Description
Hsg_MTP®-16_Green
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
