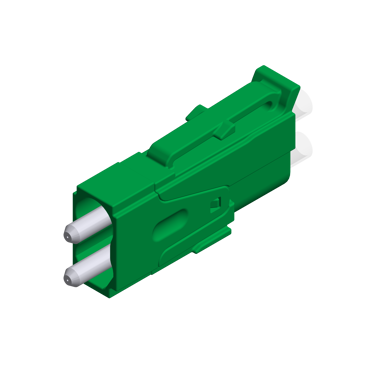

22086, Kit, MDC Jr., Single-mode APC, Green Housing
Specifications
Part Number
22086
Brand
ELiMENT® Single Fiber
Type
Plug
Style
MDC
Performance
Low-loss
Fiber Type
Single-mode
Fiber Count
1x2
Polish Type
APC
Housing Color
Green
Boot Color
No Boot
Heat Shrink Color
No Heat Shrink
Cable Style
Jr. MDC Housing
Cable Exit Type
No Boot
Insertion Extraction
Latch Release
Downloads
Drawing
C22085.pdf
Kit Bill of Materials
Component Part Number
Description
Drawing
Component Part Number
22036
Description
Conn_Hsg_MDCJR_Back_Green
Drawing
C21243.pdf
Component Part Number
22227
Description
Ferr Assy_1.25MM_APC_10 LIT
Drawing
C22227.pdf
Component Part Number
22019
Description
Conn_Hsg_MDCJR_Front_Green
Drawing
C21244.pdf
Component Part Number
24172
Description
Dust Cap_MDC and MDC Jr._Clear
Drawing
C24172.pdf
