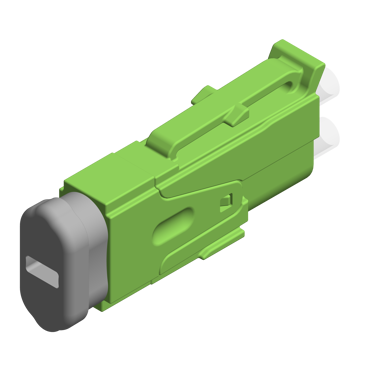

22240, Kit, MDC, Jr. Mulitmode, Lime Housing

Specifications

Part Number
22240
Brand
ELiMENT® Single Fiber
Type
Plug
Style
MDC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x2
Polish Type
PC
Housing Color
Lime
Boot Color
No Boot
Heat Shrink Color
No Heat Shrink
Cable Style
Jr. MDC Housing
Cable Exit Type
No Boot
Insertion Extraction
Latch Release

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22039
Description
Conn_Hsg_MDCJR_Back_Lime
Drawing
Component Part Number
22044
Description
Ferr Assy_1.25mm_SM_10 LIT
Drawing
Component Part Number
22022
Description
Conn_Hsg_MDCJR_Front_Lime
Drawing
Component Part Number
24172
Description
Dust Cap_MDC and MDC Jr._Clear
Drawing
