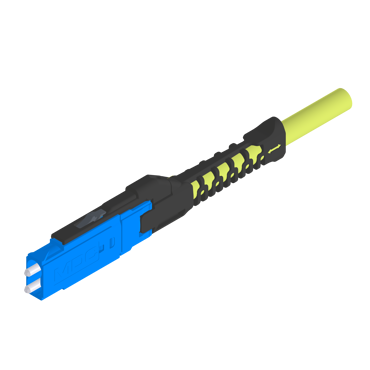

22082, KIT, MDC, 2mm, Single-mode, Blue Housing, Black Push-Pull Boot

Specifications

Part Number
22082
Brand
ELiMENT® Single Fiber
Type
Plug
Style
MDC
Performance
Low-loss
Fiber Type
Single-mode
Fiber Count
1x2
Polish Type
PC
Housing Color
Blue
Boot Color
Black
Heat Shrink Color
Yellow
Cable Style
2.0 mm Round
Cable Exit Type
Push Pull Boot
Insertion Extraction
Push Pull

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
25147
Description
Latch Assembly_BLK_MDC/MMC
Drawing
Component Part Number
19819
Description
Boot _PP_MDC/MMC_BLK
Drawing
Component Part Number
17222
Description
Heat Shk/Crimp BandAssy_Yellow
Drawing
Component Part Number
19816
Description
Crimp Body_MDC_Blue
Drawing
Component Part Number
21378
Description
Spring_MDC_Connector
Drawing
Component Part Number
22044
Description
Ferr Assy_1.25mm_SM_10 LIT
Drawing
Component Part Number
19814
Description
Housing_Connector_MDC_Blue
Drawing
Component Part Number
24172
Description
Dust Cap_MDC and MDC Jr._Clear
Drawing
