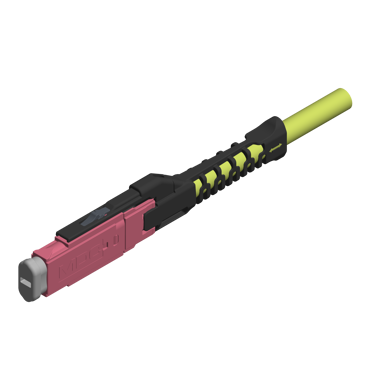

22236, Kit, MDC, 2mm, Multimode, Heather Violet Housing, Black Push-Pull Boot

Specifications

Part Number
22236
Brand
ELiMENT™ Single Fiber
Type
Plug
Style
MDC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x2
Polish Type
PC
Housing Color
Heather Violet
Boot Color
Black
Heat Shrink Color
White
Cable Style
2.0 mm Round
Cable Exit Type
Push Pull Boot
Insertion Extraction
Push Pull

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22715
Description
Boot/Latch Assembly_MDC_Black
Drawing
Component Part Number
17221
Description
Heat Shk/Crimp Band Assy_White
Drawing
Component Part Number
22017
Description
Crimp Body_MDC_HViolet
Drawing
Component Part Number
21378
Description
Spring_MDC_Connector
Drawing
Component Part Number
22044
Description
Ferr Assy_1.25mm_SM_10 LIT
Drawing
Component Part Number
22013
Description
Housing_Connector_MDC_H.Violet
Drawing
Component Part Number
21464
Description
Dust Cap_MDC and MDC Jr.
Drawing
