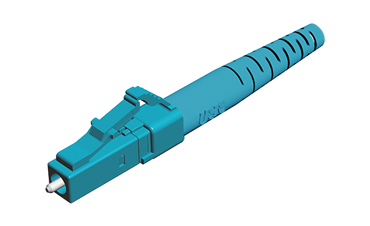

17406, Kit, LC 2.0mm, Multimode, Aqua Housing, Aqua Boot, Yellow Heatshrink Assembly

Features

  • Flat ferrule endface
  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body

Applications

  • Data center cabling / patch cords
  • FTTx fiber distribution hubs
  • High density central office applications
  • Standards Compliance IEC-61754-20
  • Standards Compliance TIA-604-10

Specifications

Part Number
17406
Brand
ELiMENT® Single Fiber
Type
Plug
Style
LC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x1
Polish Type
PC
Housing Color
Aqua
Boot Color
Aqua
Heat Shrink Color
Yellow
Cable Style
2.0 mm Round
Cable Exit Type
Standard Boot
Insertion Extraction
Latch Release

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17211
Description
Hsg Assy_LC_MM_2.0_Aqua_W/Cap
Drawing
Component Part Number
17222
Description
Heat Shk/Crimp BandAssy_Yellow
Drawing
Component Part Number
17288
Description
Boot_LC_2.0 mm_Aqua_USC
Drawing
