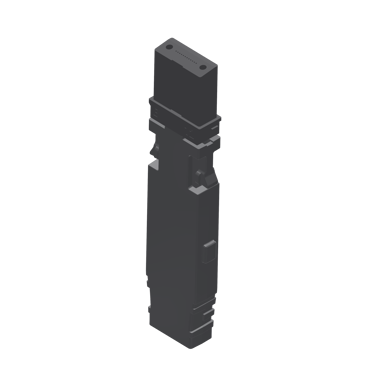

24147, Kit Fast-Track™ MTP®, Ribbon, Female, Multimode and Single-mode

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Highest precision SS guide pins
  • Industry leading lowest loss Insertion Loss when used with MT Elite® Ferrules
  • Removable housing for interferometry and rework

Applications

  • Array fiber to single fiber breakouts and cassettes
  • Array trunk cables
  • FTTh (home) MDU cabling
  • Parallel optic patch cables: SR-4, SR-8 & PSM4
  • Qualified to GR-1435 service life
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
24147
Brand
Fast-Track™
Type
Plug
Plug Performance
MTP Elite®
Fiber Type
Single-mode
Gender
Female
Spring Force
10N
Fiber Count
1x8, 4+4, 1x12, 2x12
Cable Style
Ribbon
Operating Environment
Controlled
Cable Exit Type
No Boot
Style
MTP

Downloads

Drawing

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22132
Description
Ferrule Push_Fast-Track™MTP®
Drawing
Component Part Number
22188
Description
Dust Cap_Fast-Track™MTP®
Drawing
