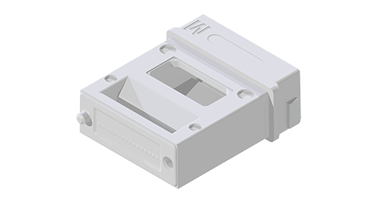

19883, Ferrule, PRIZM®MT 1x16 MM with 850AR coating

Features

  • Collimating lenses
  • Compatible with MXC® connectors and other MT based connector embodiments
  • Debris insensitivity
  • Low insertion force
  • Monolithic ferrule design
  • No physical contact
  • No polish, low cost termination
  • Optional AR coating
  • Telcordia GR-1435 compliant
  • Up to 64 fibers per ferrule; ?16 fibers per row, ?4 rows per ferrule

Applications

  • Front panel and backplane
  • High density point-to-point interconnects
  • High performance computing
  • Switch to server interconnects
  • Switch to switch interconnects
  • Switching/routing fabrics

Specifications

Part Number
19883
Brand
PRIZM® MT
Type
PRIZM® MT Elite®
Fiber Type
Multimode
Fiber Count
1x16
Beam Type
Collimated
Beam Waist
180 micron
Fiber Cladding Size
125 micron

Downloads

Drawing
