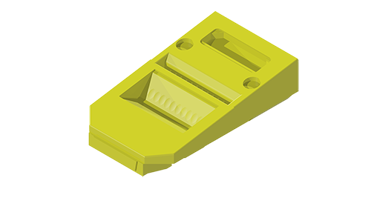

13950, Ferrule, PRIZM® LT 12F MM

Features

  • Bidirectional components
  • Collimating lenses
  • Ferrule float within the connector
  • Integrated alignment pins
  • Keyed for proper mating orientation
  • Quick termination, no polishing
  • TIR (total internal reflection) lens
  • Wavelength independent optical grade material

Applications

  • Active Optical Cables
  • MPO pluggable transceivers
  • On-board mounted optical engines

Specifications

Part Number
13950
Brand
PRIZM® LightTurn®
Type
Tx/Rx Interface Plug
Fiber Type
Multimode
Fiber Count
1x12
Beam Type
Collimated
Beam Waist
180 micron
Fiber Cladding Size
125 micron
