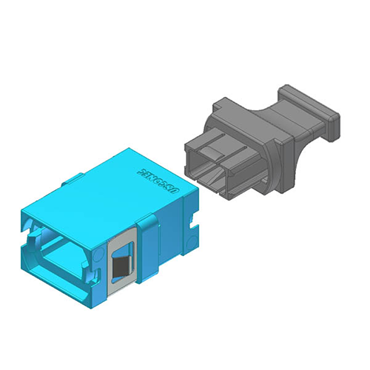

12224, Adapter, MTP® SC Footprint, Reduced Flange, Opposed Key, Aqua, 1 Dust Plug

Features

  • Exceeds TIA and IEC dimensional requirements for optimal TWAL performance
  • Latch beam and interface designed to minimize debris generation

Applications

  • Card edge connectivity for on-board optic applications
  • FTTx distribution hubs
  • High density patch panels for data center, MSO and CO applictions
  • MTP® to single fiber breakout cassettes
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

Specifications

Part Number
12224
Brand
MTP®, MTP®PRO
Type
Adapter
Adapter Footprint
SC Footprint
Adapter Color
Aqua
Adapter Mounting
Clip Only: Reduced Flange
Performance
Simplex Adapter
Key Orientation
Opposed Key
Style
MPO

Downloads

Drawing
12224, Adapter, MTP® SC Footprint, Reduced Flange, Opposed Key, Aqua, 1 Dust Plug
