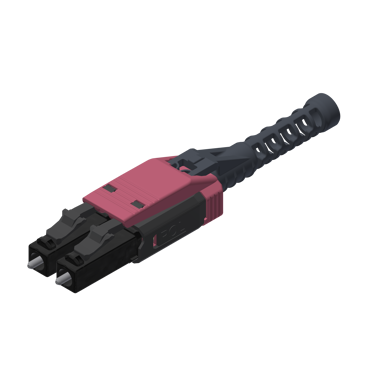

22753, Kit, Uniboot 3mm, Mulitmode, Black Plug, Heather Violet Housing, Black Push-Pull Boot

Features

  • Color coded polarity type window
  • Easy field polarity change
  • Engineered cable assembly termination system for optimal factory yield
  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • Low profile design for industry leading density
  • Optional push-pull tab can be added at factory or in the field
  • PC and APC versions polished as duplex for time savings
  • Tunable body

Applications

  • Data center cabling / patch cords
  • FTTx fiber distribution hubs
  • High density central office applications
  • Standards Compliance IEC-61754-20
  • Standards Compliance TIA-604-10

Specifications

Part Number
22753
Brand
ELiMENT® Single Fiber
Type
Plug
Style
LC Uniboot
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x2
Polish Type
PC
Housing Color
Heather Violet
Boot Color
Black
Heat Shrink Color
No Heat Shrink
Cable Style
2.0mm, 2.5mm, 3.0mm
Cable Exit Type
Push Pull Boot
Insertion Extraction
Latch Release, Push-Pull Hsg

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
22614
Description
LCU_Sub-Assy_MM_126
Drawing
Component Part Number
22619
Description
LCU_Push-Pull Housing_HViolet
Drawing
Component Part Number
18924
Description
Uniboot_Crimp Ring_3mm_2x900um
Drawing
Component Part Number
23502
Description
Boot_PushPull_Uniboot2_Lock_Bk
Drawing
