Features
- Color coded polarity type window
- Easy field polarity change
- Engineered cable assembly termination system for optimal factory yield
- Industry leading IL: <0.15dB random intermate @ >97% of channels
- Low profile design for industry leading density
- Optional push-pull tab can be added at factory or in the field
- PC and APC versions polished as duplex for time savings
- Tunable body
Applications
- Data center cabling / patch cords
- FTTx fiber distribution hubs
- High density central office applications
- Standards Compliance IEC-61754-20
- Standards Compliance TIA-604-10
Specifications

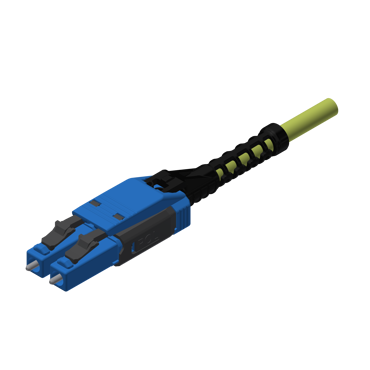

Part Number
22626
Brand
ELiMENT® Single Fiber
Type
Plug
Style
LC Uniboot
Performance
Low-loss
Fiber Type
Single-mode
Fiber Count
1x2
Polish Type
PC
Housing Color
Blue
Boot Color
Black
Heat Shrink Color
Yellow
Cable Style
2.0 mm Round
Cable Exit Type
Push Pull Boot
Insertion Extraction
Latch Release, Push-Pull Hsg
Downloads
Drawing
Literature
Videos
Kit Bill of Materials
Component Part Number
Description
Drawing
